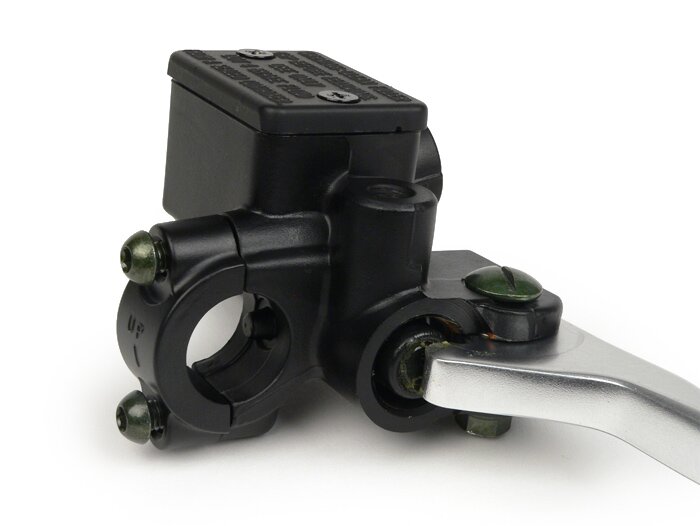

Complete brake pump (master brake cylinder) original Piaggio, made by Heng Tong. Suitable for the Vespa LX and Vespa S models. Conventional handlebar clamping via two half shells (pipe clamp). By the 11mm Ø piston diameter also for Vespa and Lambretta conversions to a fully hydraulic disc brake an interesting option.
Here is an overview of the force applied to the brake piston when combining different calipers and pump combinations.
In general, an increase in the slave piston with the same master piston always results in an increase in the braking force, but with a longer lever travel.
Conversely, when installing a brake pump with a larger piston but the same brake caliper, a decrease in the force applied to the brake piston can be assumed, but with a smaller lever travel. Thus the brake becomes more direct, but requires more lever force for the same brake performance.
|
driving piston (brake caliper) |
||||
|
25mm |
28mm |
30mm |
32mm |
|
|
dispenser piston |
||||
|
10mm |
375 N |
p>470 N |
540 N |
614 N |
|
11mm |
310N |
389 N |
446 N |
p>508 N |
|
12mm |
260 N |
327 N |
375 N |
427 N |
|
13mm |
p>222 N |
278 N |
320 N |
364 N |
|
14mm |
191 N |
240 N |
p>276 N |
313 N |
|
15mm |
167 N |
209 N |
240 N |
273 N |
|
16mm |
146 N |
184 N |
211 N |
240 N |
|
17mm |
130 N |
163 N |
187 N |
213 N |
