The time has finally come !
The MCPSK [MC PULLSTART KIT] for Piaggio mopeds is now available !
True to our slogan there is always something to improve
we have once again gone all out !
Slim & discreet design with recessed pull starter housing,
on a base plate made of 6062T6 aluminium CNC-machined and black anodized.

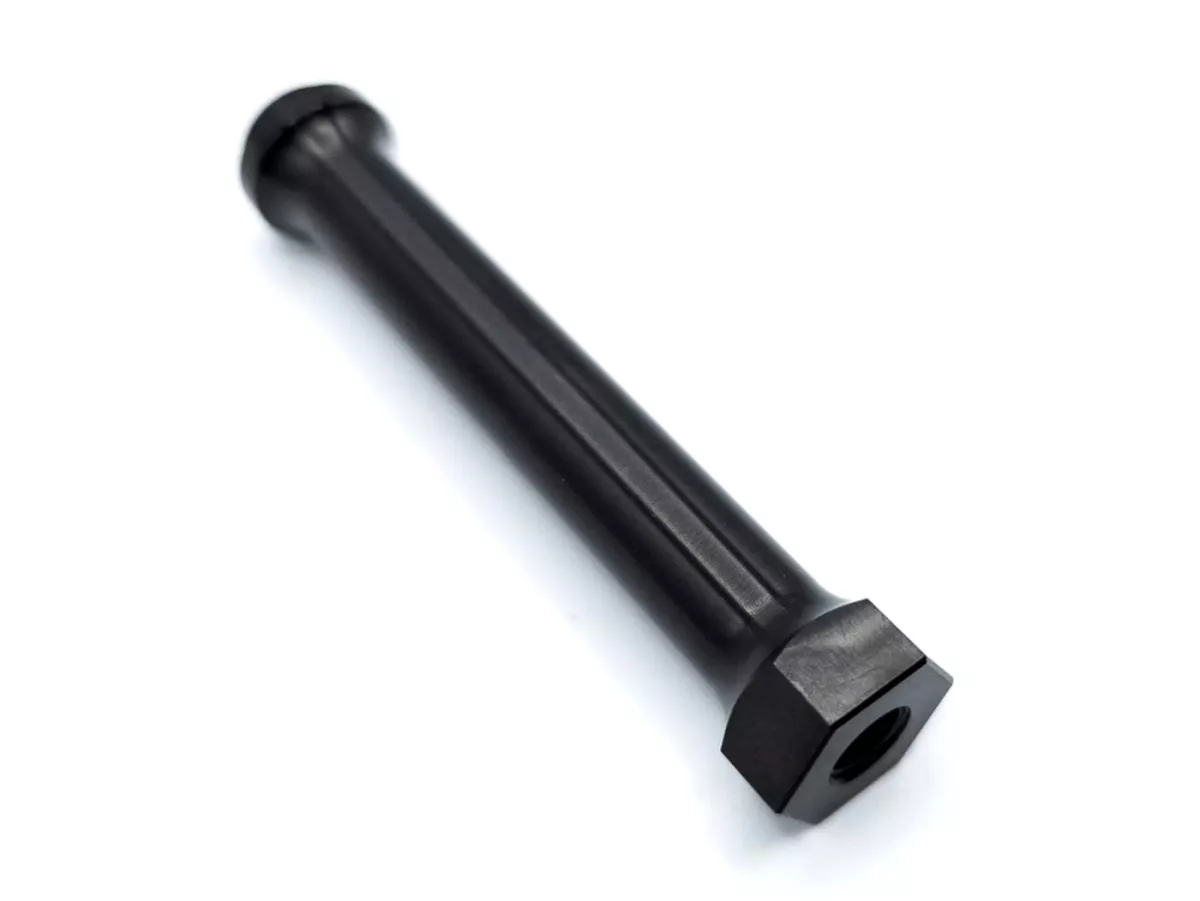

The 3 stud bolts are made of 1.4305 stainless steel and are black PVD-coated,
in addition, the stud bolts have a shoulder that engages in the base plate and thus prevents twisting or incorrect mounting,
and reduces the tilting moment due to the enlarged design of the screw-on surface!
Here, too, emphasis was placed on a slim design, so there is no need for the usual 15-18 mm holes in the side parts.
All visible mounting parts such as screws & washers are made of stainless steel & black BZP-coated.
⭐The highlight:
The enclosed drive nut is made from titanium grade 5 CNC (3.7164)
and weighs 17g!
Some of the usual scriber nuts on the market have a weight of 100g + or are made of aluminum!
The titanium nut not only feels indestructible and guarantees a very long thread life,
but also protects the crankshaft & bearing seats in the housing.
Due to the rotating mass & the exposed installation location
at the outermost end of the crankshaft, it is better not to install a drive nut that weighs well over 40g if you value your crankshaft and/or bearing seat.
This can quickly lead to damage, especially with tuned and high-revving engines!

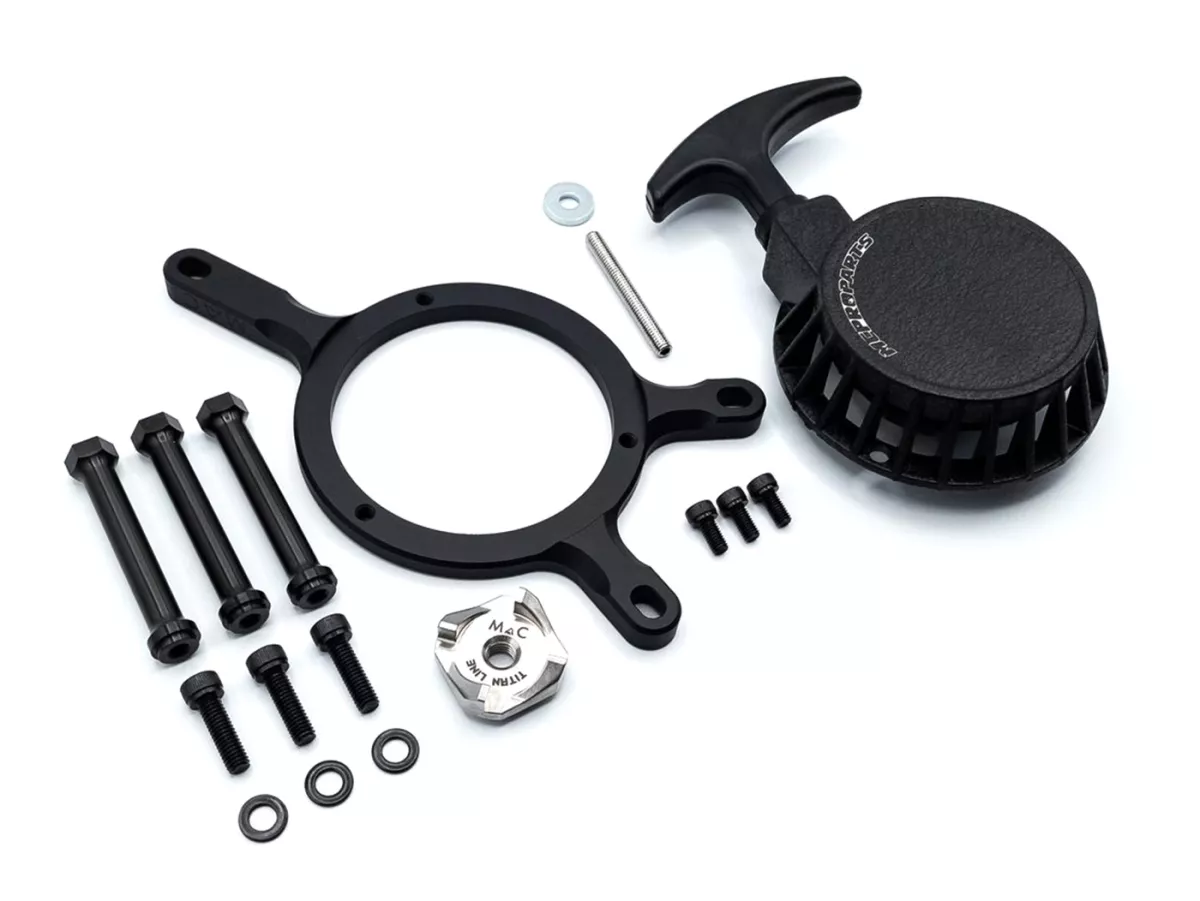

⭐The scope of delivery includes:
⭐1x milled aluminium main plate (6062T6) black anodized (discreet logo on the side)
⭐3x stud bolts made of stainless steel (1.4305) black PVD-coated
⭐1x scriber nut titanium grade 5 (3.7164) optionally with M10x1.25 or M8x1.25
⭐1x scriber cast aluminum black housing / black handle / discreet logo
⭐3x M5 stainless steel screws (1.4305) black BZP-coated
⭐3x M6 stainless steel screws (1.4305) black BZP-coated
⭐3x M6 stainless steel washers (1.4305) black BZP-coated
⭐1x Stainless steel grub screw m6 (1.4305) black BZP-coated
⭐1x spacer 3mm (c45) steel, galvanized
⭐Info :
– the three M6 screws and washers are used to screw the base plate together with the marker housing onto the stud bolts previously mounted at
.
– The supplied 3mm washer is located under the rear stud bolt (special feature of Ciao).
– Suitable for Ciao , Bravo , Si , Citta , EC1 , Boxer
Adjustments may be necessary when fitting to vehicles of the SI series with CVT drive.
