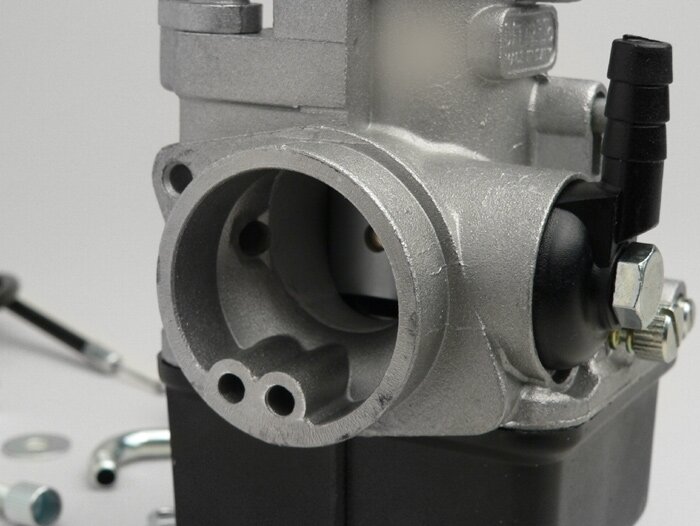

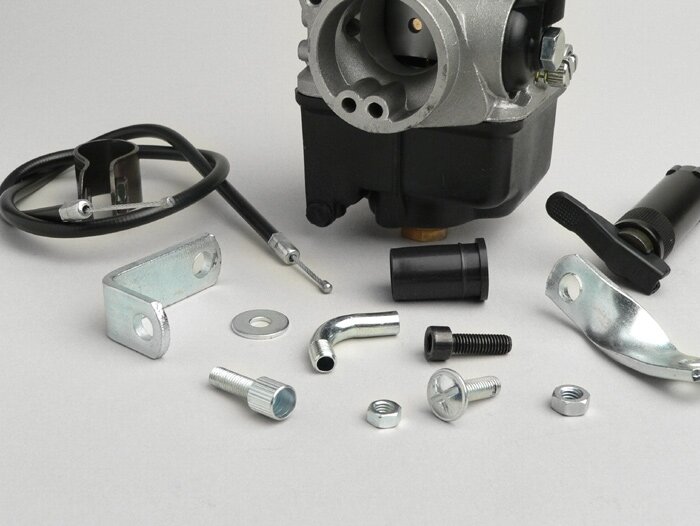

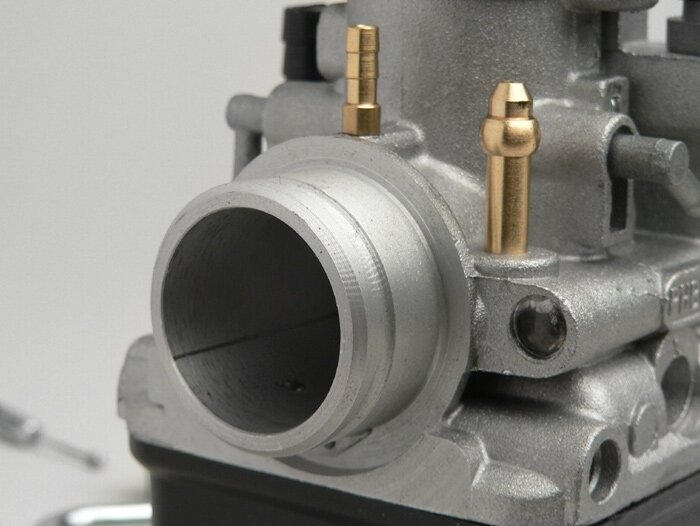

Carburetor kit Malossi 25mm Dell’Orto for
Piaggio SKR, Gilera Runner 125-180, Aprilia SR 125-150, Italjet Dragster 125-180
Fast and easy tuning with the Malossi carburetor kit.
The performance of the engine is noticeably increased by the larger carburettor cross section.
The enclosed manual choke eliminates the electrical series choke, which reduces consumption and improves the dosage of cold start significantly.
For the assembly of the carburetor kit under retention of the original air filter box the following modifications are necessary:
- original intake manifold: Shorten as described in the enclosed instructions
(alternatively the Malossi intake manifold M027528B can be used) - connecting rubber to the air filter box: Also shorten (11mm)
- Air filter box: drill holes for the air sleeve and insert the sleeve
The basic spark plug fits very well for an unmachined 172cc Malossi cylinder with original exhaust. In case of further modifications, especially on the cylinder head, exhaust as well as on the choice of the exhaust, a simultaneous adjustment of the carburettor e.g. by means of one of our nozzle sets is an easy way to guarantee both performance and reliability.
Recommended is the Malossi or Polini air filter mat. These improve the air supply a little bit without reducing the filter performance. For engines with a higher air demand we recommend to put more sleeves into the airbox.
(the sleeves break the sound, pure drillings would make the airbox very loud).
A reed block with carbon reed plates and rubberized stop surface completes the intake-side tuning package.
setup:
- needle: D30 (second notch from above)
- slide: 30
- main nozzle: 82
- mixing tube: AQ266
- Side nozzle: 45
- Choke nozzle: 60
- with vacuum connection
