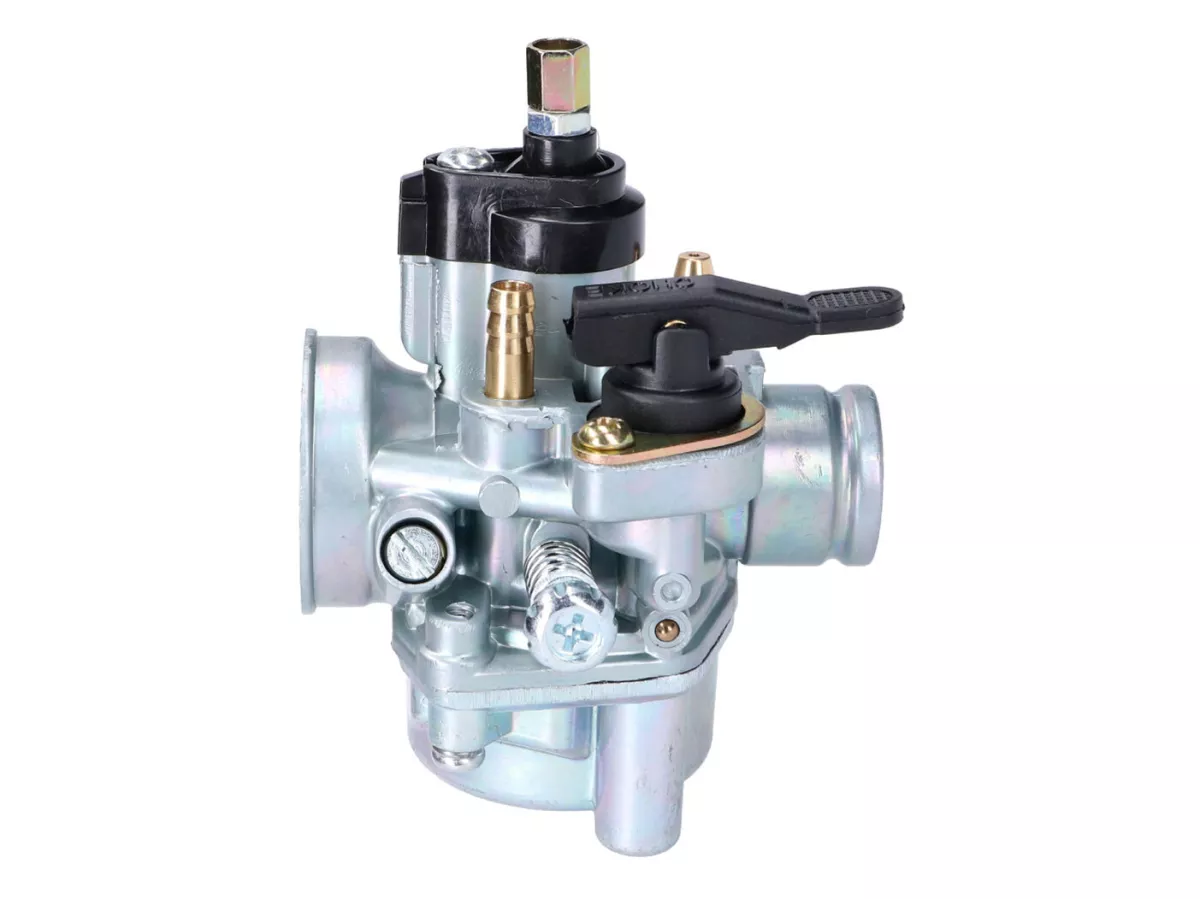

carburetor -NARAKU- 17.5mm incl. manual choke for gear shift bikes scorte limitate

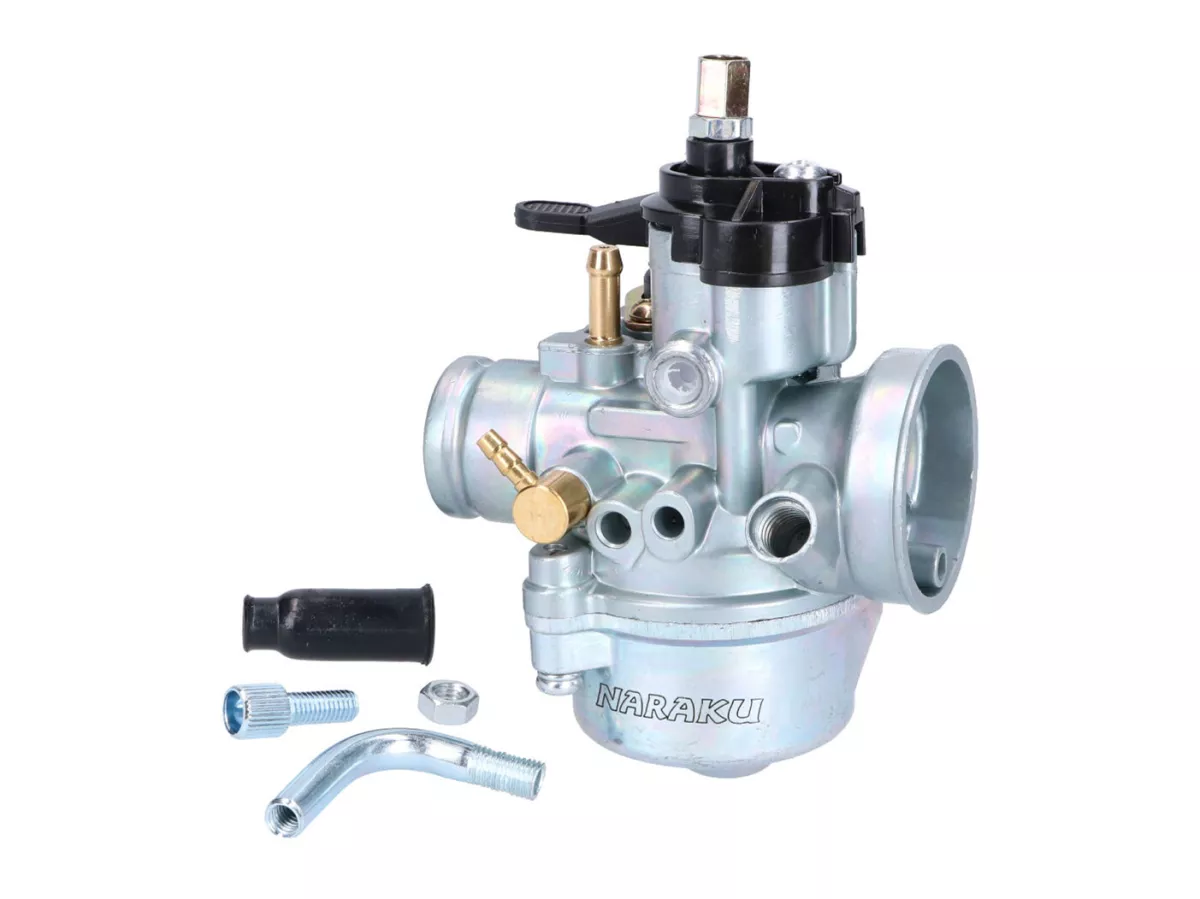

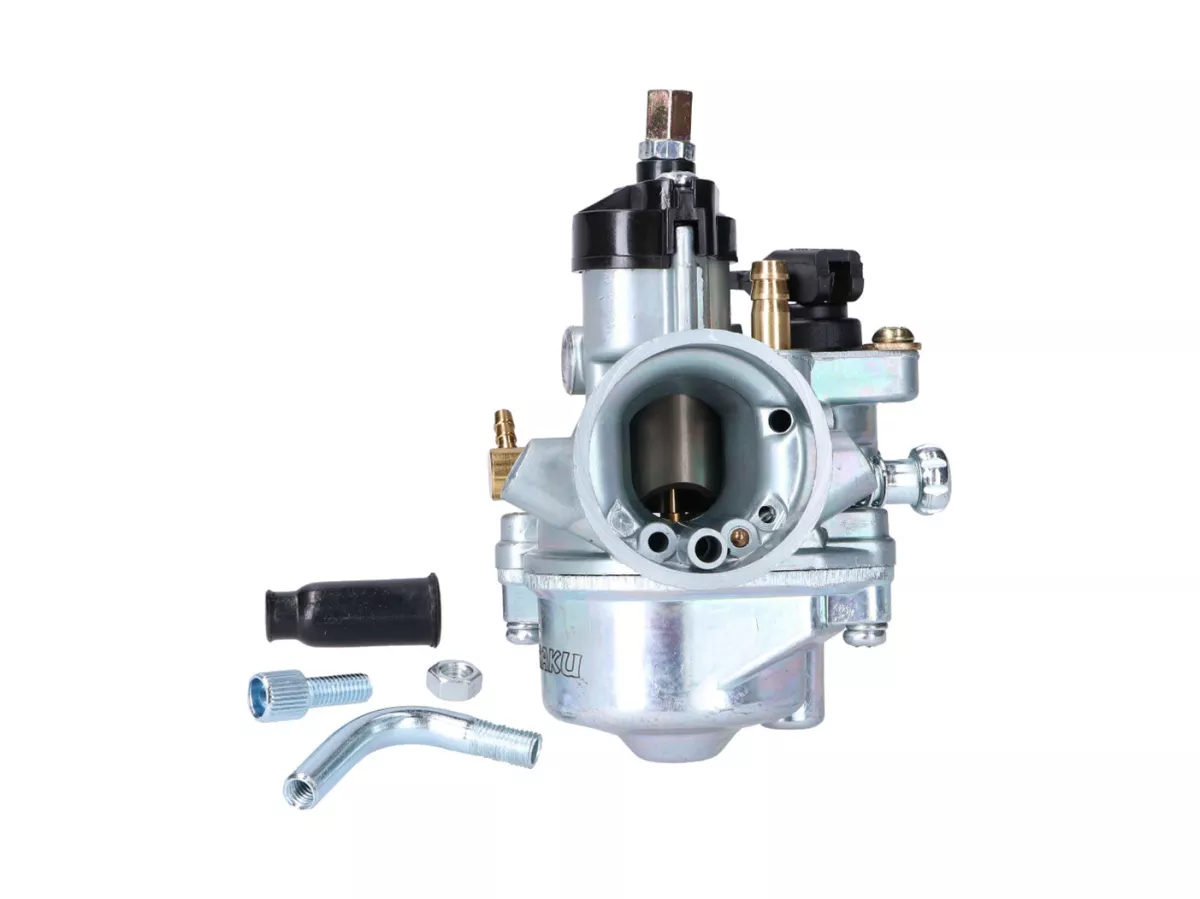

17,5mm carburetor from Naraku for manual mopeds with Minarelli (AM6) or Derbi (EBE, EBS, D50B0) engines. The carburetor comes with straight and angled connector for the throttle bowden cable. A manual lever choke is already mounted. Range of use: 50cc original cylinder to 70cc sport cylinder.

Main jet: 85 (6mm)
Secondary nozzle: 38 (4mm)
Connection width intake manifold: 24mm
Connection width air filter: 35mm
Carburetor needle: A7AI-translation
