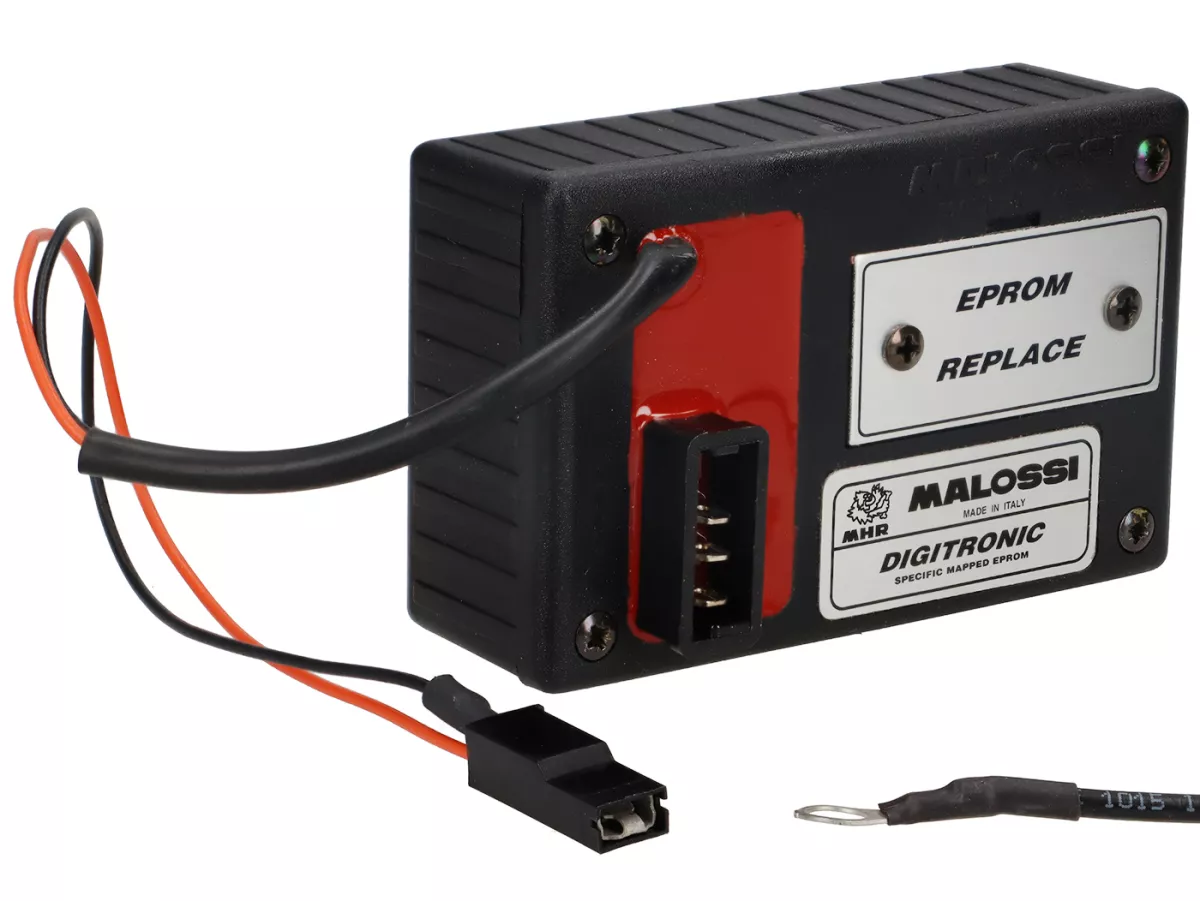

CDI -MALOSSI- Digitronic PVM – with fixed ignition timing – Piaggio 50 AC/LC – for vehicles without immobiliser sconto

ELECTRONIC CONTROLS
The constant evolution of electronics in the engine sector has led Malossi to realize and distribute a complete range of electronic controls for road and racing scooters, which are at the cutting edge of technology.
Each control unit has been specifically designed for a specific scooter model and, after numerous tests on fixed and mobile test benches, as well as on race tracks, an optimum ignition characteristic (fixed and variable) has been defined in order to maximize the vehicle’s performance. Malossi electronic controls have been designed for easy installation, as the compact and ergonomic products are interchangeable with the standard controls and fit exactly on the original connections.
Malossi controls also make the rev limiter of the standard controls superfluous, allowing the full power and torque of the engines to be used up to 20,000 rpm. Malossi controls with capacitive discharge therefore have maximum interference suppression during discharge and deliver an almost perfect current pulse to the spark plugs (35,000-50,000 volts depending on engine speed), as well as delivering a very high and surprisingly constant discharge voltage and discharge current at all engine speeds.

Technical specifications

Control unit supply: original
rpm maximum: 20,000
Discharge voltage: 35,000 – 50,000 volts
Setting: variable
