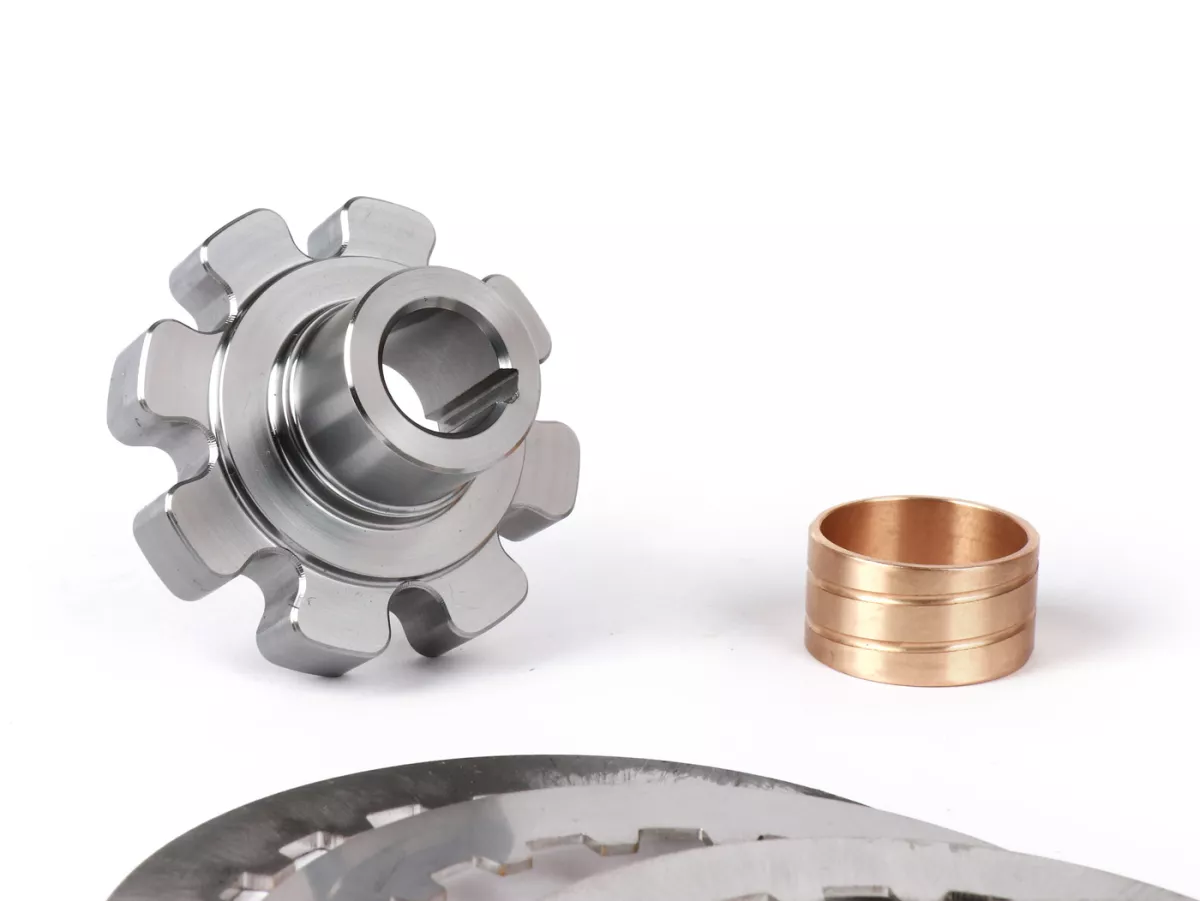

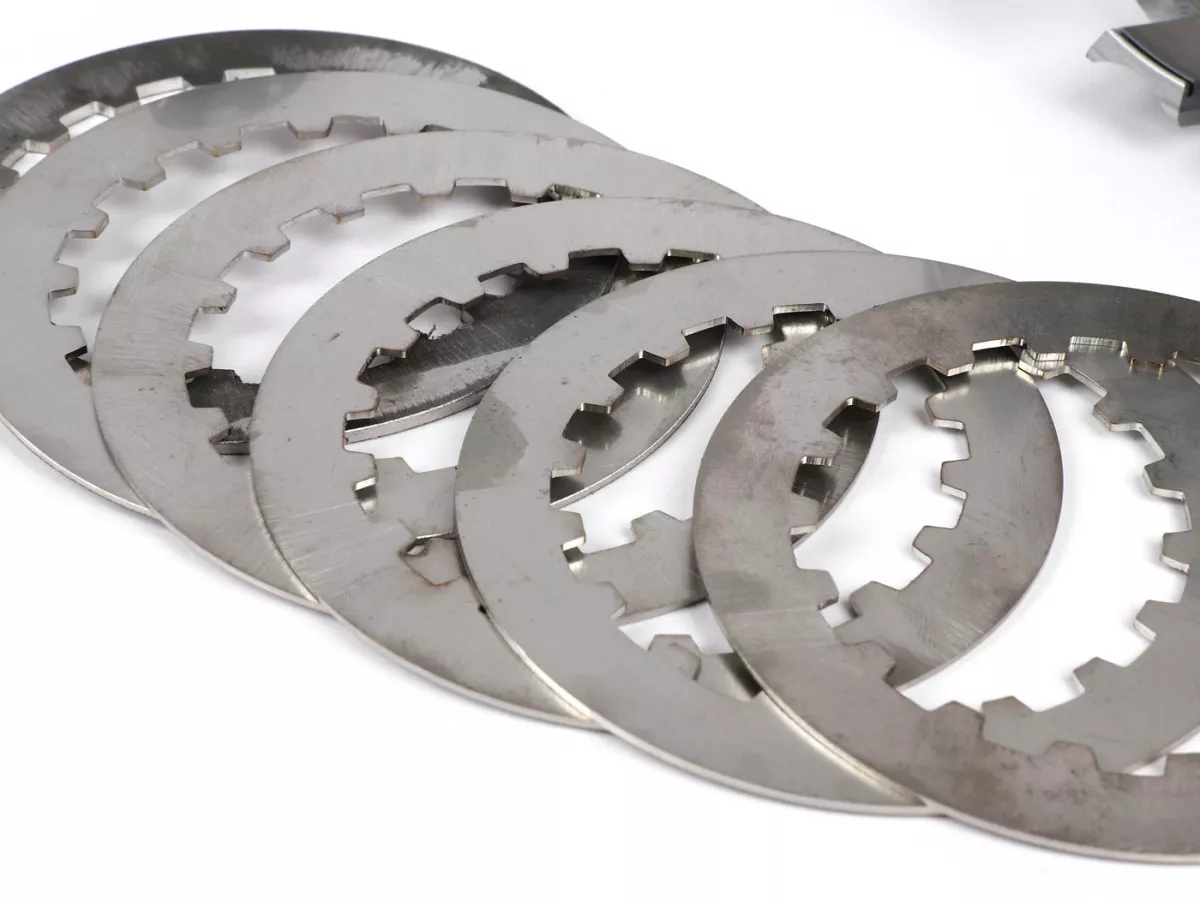

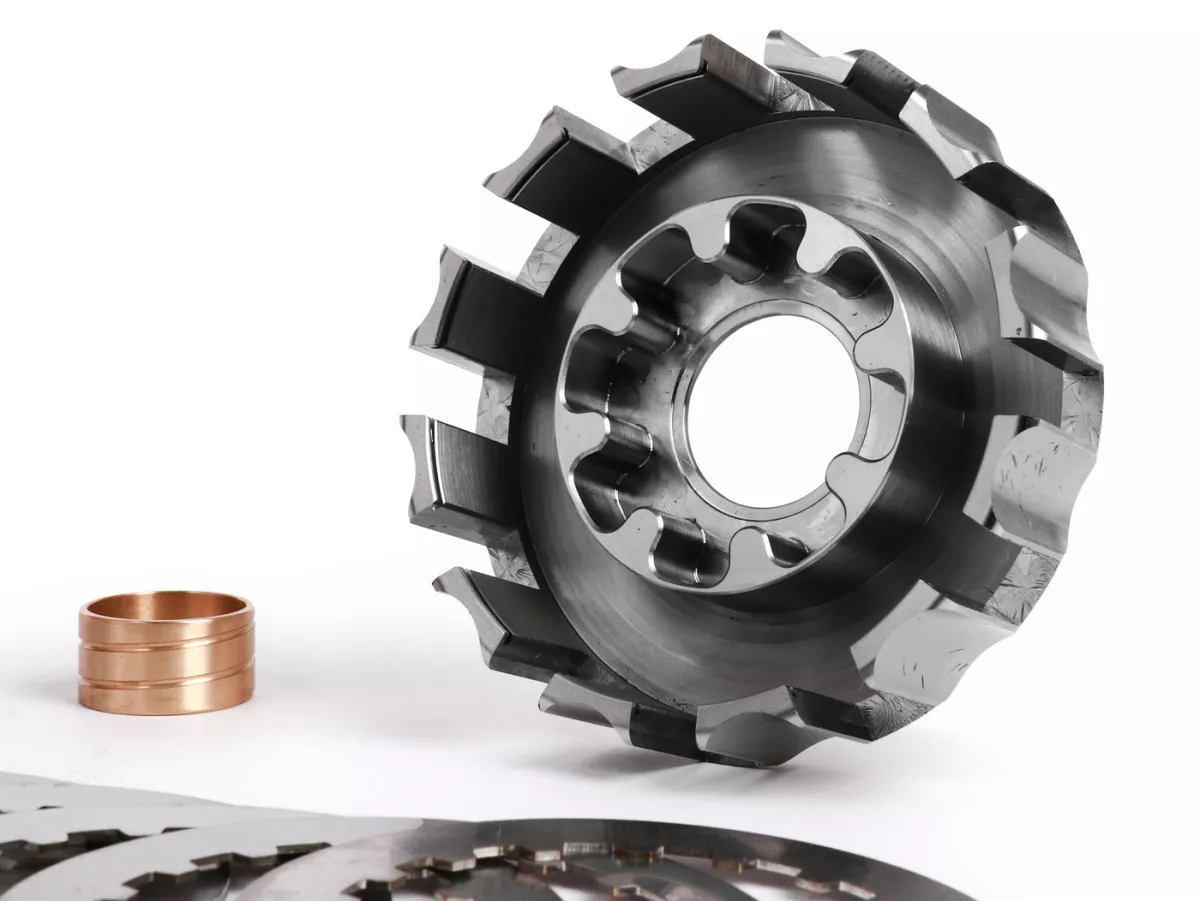

Clutch basket incl. hub and steel discs -STINGWORKS Sei Giorni GP- Vespa Wideframe 1953-1959 VM, VN, VL, VB, Motovespa 125S (V72M, V58MS, V60MS), Largeframe VNA, VBA, VNB, VGLA, VBB1T, Motovespa 125N (V56M, V58M, V60M, V101M) svendita

STINGWORKS Sei Giorni GP sports clutch for Vespa Wideframe 1953-1959

Ultra-compact CNC clutch with 6 KTM linings.
The clutch was deliberately kept small in size and height.
This means it fits into the wideframe engines from 1953 to 1959.

The small design means that it can be used without having to unscrew the clutch cover. No spacer is required even in 2-channel engines.

Due to its small design, the compact clutch also fits in all common largeframe engines.
Here, however, the flat design of the clutch may have to be compensated for (e.g. with Vespa PX) by using a pressure plate with bearings on the PK XL2.
To prevent cracks in the wedge, the spring plate is 1 mm larger in diameter.
This significantly increases stability.
Engine outputs of over 30 hp are possible with this clutch.

Cosa2 sprockets (also PX from 1998) are used.
The clutch springs used are also those of the Cosa2 clutch (e.g. 7674732).
There are 8 spring positions available. When using springs other than those specified here, please pay attention to the block dimensions and clearance of the pads.

AI-translation
