Control device fuel injection -MALOSSI Forcemaster 3- Vespa GTS 300 HPE ZAPMA3600, GTS 300 Super HPE ZAPMA3600, GTS 300 Super Tech HPE ZAPMA3600, GTS 300 Super Sport HPE ZAPMA3600, GTS 300 Sei Giorni HPE ZAPMA362, GTS 300 HPE ZAPMD310, GTS 300 Super Sport

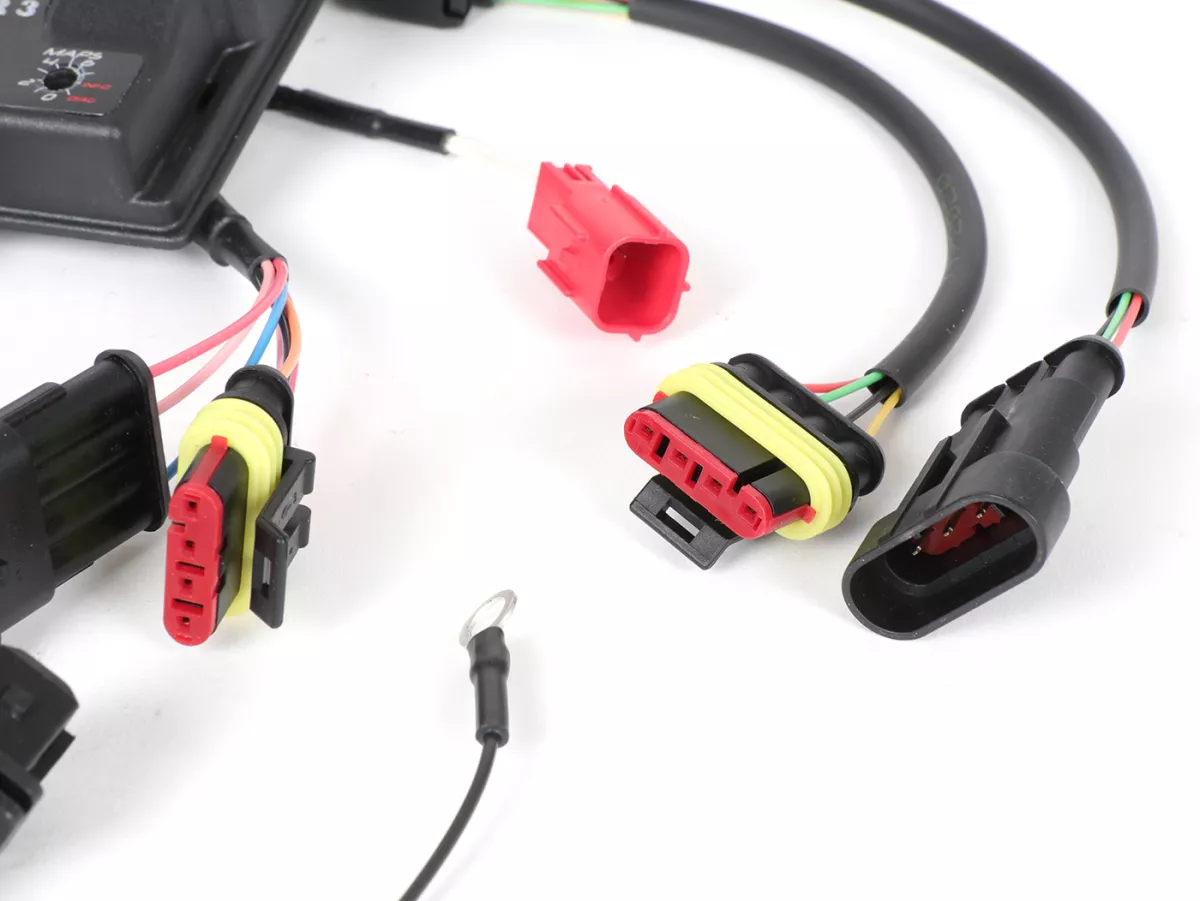

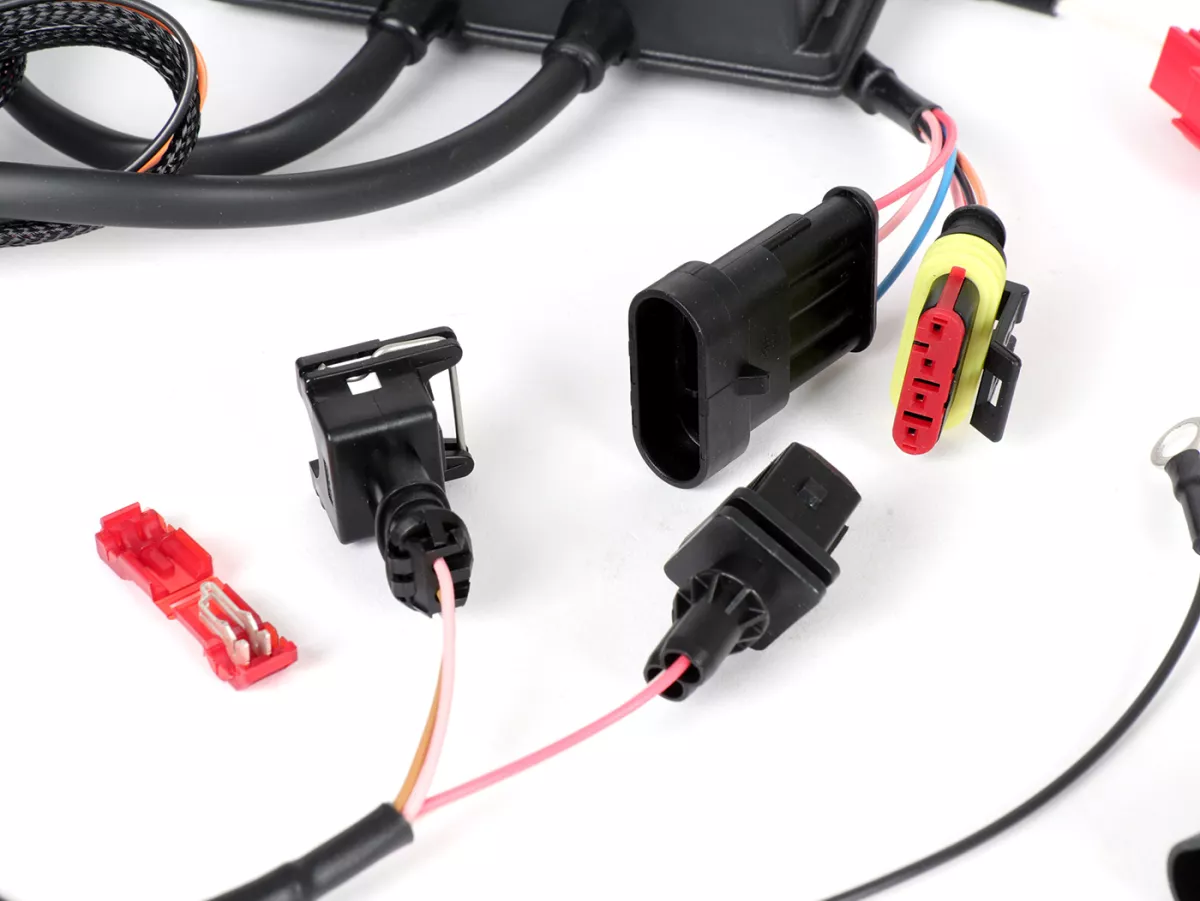

The Forcemaster 3 injection module allows the adjustment of the injection amount when using the new MALOSSI 4-stroke cylinders.

4 setting maps are available to choose from, allowing perfect tuning.

These settings have been developed in various static tests and under different loads on the test bench.

This guarantees a perfect injection in combination with the Malossi cylinders or other setups.

CDI

• Injection volume adjustment
• ± 20% at min/medium/max
• Rev limiter : + 1000 rpm
• 4 different adjustment maps:

• Curve 0: original cylinder, original camshaft, original cylinder head and Malossi exhaust with DB killer
• curve 1: original cylinder, original camshaft, Malossi cylinder head and Malossi exhaust with DB killer
• curve 2Malossi cylinder, original camshaft, Malossi cylinder head and Malossi exhaust with DB killer
• curve 3: Malossi cylinder, original camshaft, Malossi cylinder head and Malossi exhaust with DB killer
