Cylinder -CASA PERFORMANCE SS225 X7 225cc- Lambretta TV 200, SX 200, DL 200, GP 200 – CS=42mm, for carb Ø=35mm, CH=30mm scorte limitate

Casa Lambretta Performance cylinder SS225 for 200cc engine case.

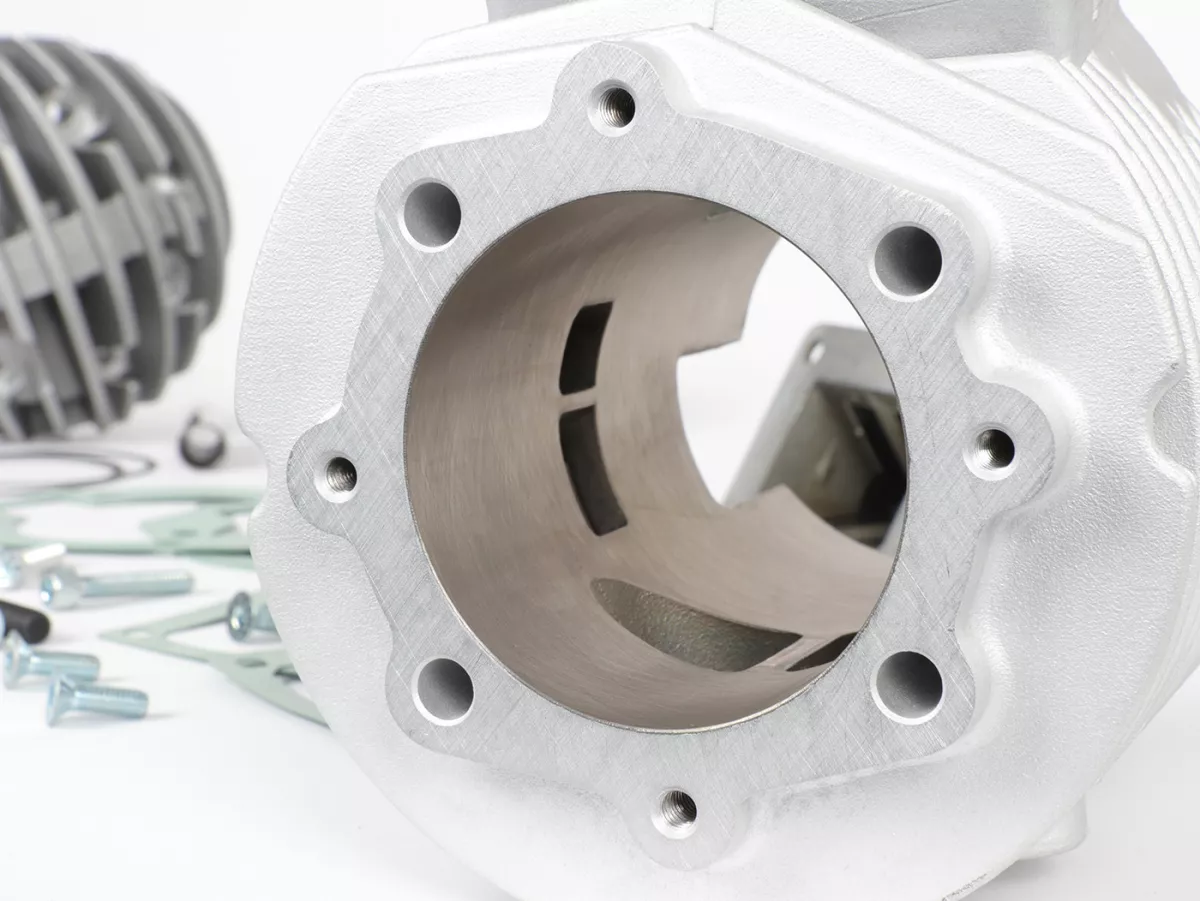

Bore 70 mm, stroke 58 mm, Nikasil coated aluminum cylinder.

The cylinder has a split exhaust, four overflows, a one-piece boost port, two Boyesen ports in the intake.

The piston from Meteor (Made in Italy) is cast, coated and has a compression height of 30mm.
.

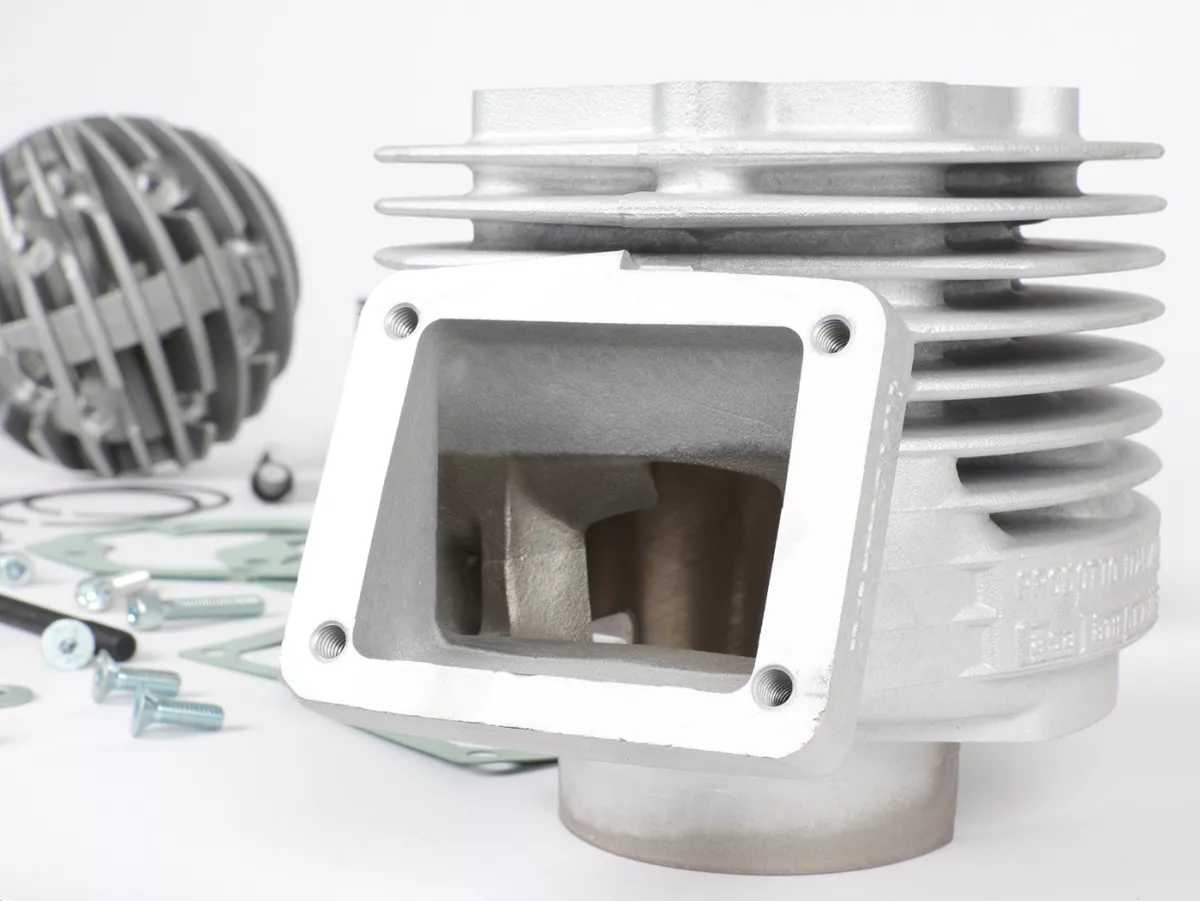

As a diaphragm, a generously sized 6-flap variant is used. The intake manifold has a streamlined stuffer and is very short. Included with the cylinder is an intake rubber with 42mm port width.
In conjunction with 34mm VHSB carburetor and Franspeed Race exhaust, the cylinder is rated at 28 rear wheel horsepower, making it the most powerful cylinder. Our recommendation would be the Tourist from Ludwig & Scherer in conjunction with a Keihin Airstriker.

Each of the ‘SS225 Lydden Hill Replica’ cylinders is an exact copy of the cylinder used by Team Casa Lambretta. The cylinder with which they spent quite a successful weekend in England, precisely at Lydden Hill as part of the BSSO.
Each cylinder kit is hand-finished by Casa tuner Roberto Barone before delivery.
