Cylinder -MALOSSI 170 cc- Yamaha 125 cc LC Euro 3 (engine type 1B9) scorte limitate

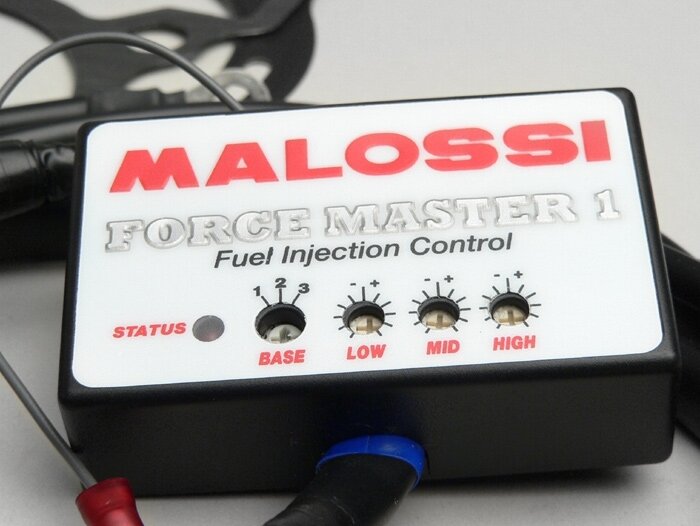

MALOSSI Racing cylinder kit for the 125 cc Yamaha 4-stroke engines (X-Max 125, X-City 125, YZF-R 125). The kit includes the Force Master 1 CDI from MALOSSI. Thanks to the Force Master 1 CDI you can tune your engine despite the fuel injection system. Four different curves are pre-programmed for different engine configurations.

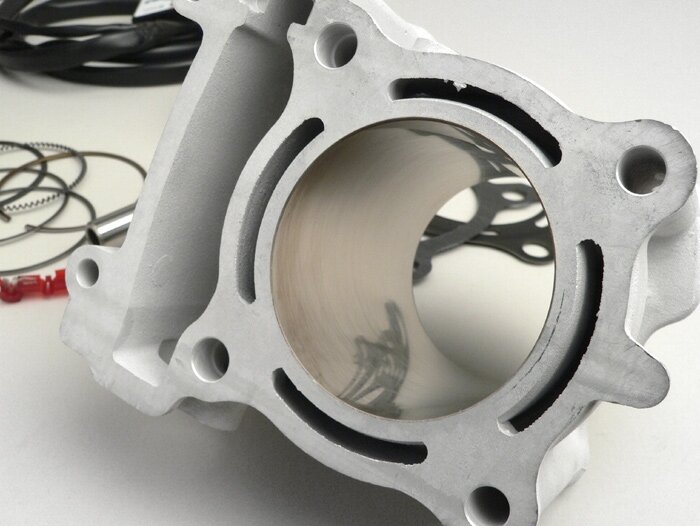

The cylinder has a 63 mm bore diameter. With the original stroke of 54.8 mm this results in a stately 170 cc displacement. The compression ratio of the kit is 11.2:1.
The reinforced Ultra Light piston has a compact design with three rings.
All in all, thanks to the aluminium jacket, a high capacity and very durable kit. The CDI box regulates the injection system in a range of +/- 20% compared to the original injection. Thus the engine can be adapted to different tuning levels and operated safely.
