Engine repair kit -PIAGGIO- Vespa PX200 (1984-1992) economico

Complete kit for the big engine revision.
When selecting the kit we have taken great care to use only original PIAGGIO spare parts as far as possible. Where these are no longer available, we have used parts that are of OEM quality.

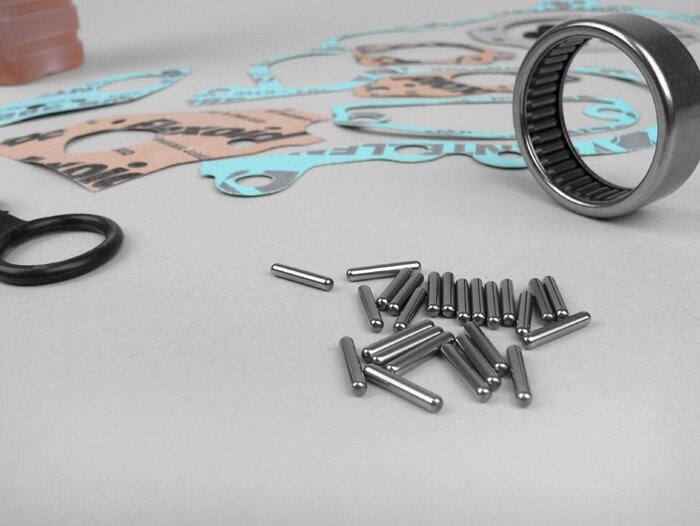

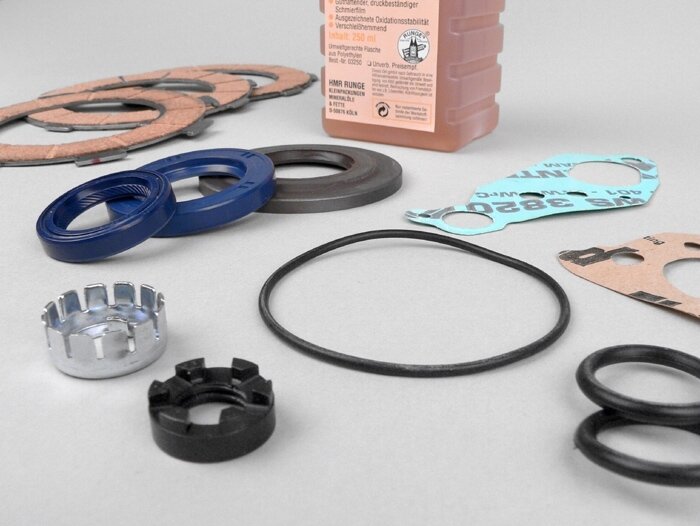

The set consists of:

• 9110030 Engine gasket kit -PIAGGIO- Vespa PX 200 Lusso
• 3820013 Oil seal kit -PIAGGIO- Vespa PX 80-200 Lusso, T5, Cosa – HR oil seal outside
• 3720006 Ball bearing -6204 2RSH- (20x47x14mm)
• 3720035 Needle bearing -PIAGGIO-NBI 253815- (25x38x15mm)
• 3720036 Ball bearing -6204613912- (25x62x12mm)
• 3720007 Ball bearing -6302- (15x42x13mm)
• 3720004 Needle bearing -B188- (29x35x12mm)
• 3720009 Bearing needle set 2,0×11,8mm
• 3620004 Gearbox oil -RUNGE- Vespa SAE 30 – 250ml
• 7672427 Clutch lining -PIAGGIO Vespa type 7-spring 3-disc – outer
• 7672428 Clutch lining -PIAGGIO Vespa type 7-spring- 3-washer – inner
• 9020085 castle nut
• 9020084 castle nut cage
• 4940012 shifting cross -PIAGGIO- Vespa PX Lusso 125ccm (VNX2T from No. 232053), 150ccm (VLX1T from no. 624302), 200ccm (VSX1T from no. 315267)
