Exhaust -QUATTRINI M3-200- for QUATTRINI M200- Vespa ET3, PV125 vendita calda online

Max Quattrini offers full 200ccm for the classic Vespas like V50, 50N, SS90, PV125, ET3, PK S, PK XL etc. With the separately available parts a fuselage engine kit can be assembled, consisting of:

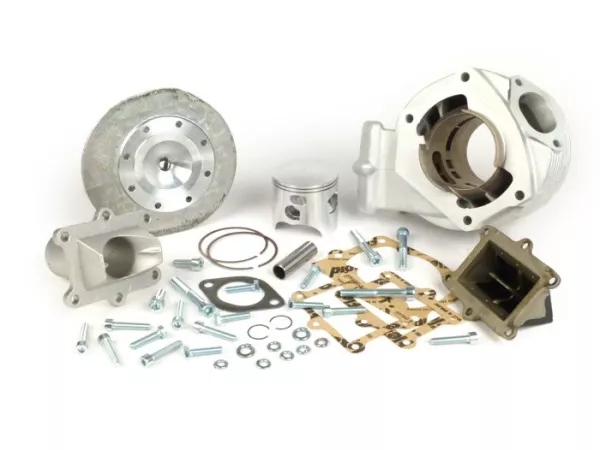

cylinder (7676558)

crankshaft (7676557)

engine case (7676556)

exhaust (7676559)

.

This is not only beyond the scope of the previously common cubic capacity classes that were installed in these vehicles, but despite the enormous displacement and performance increase, it stands on extremely solid legs, both conceptually and technically…

EXHAUST

The Quattrini exhaust (la sua christened), which was specially manufactured for the 200cc kit, has an enormous stud spacing of 66mm at the cylinder flange, which matches the kit. Therefore this exhaust does not fit to any other common cylinder. The performance curve is very linear and broadband. It offers already from the speed cellar enormous thrust which does not decrease up to over 8000 rpm. Due to its special design the luggage compartment of the PV/ET3 models does not have to be removed or modified. If the exhaust is to be placed in a PK chassis, however, the separating plate on the side must be removed.

The exhaust is made of only 0.8mm thin sheet steel and has a typical 2-stroke tinny sound pattern. A wrapping of the resonance body with heat protection tape minimizes the higher frequencies effectively.

Quattrini M3-200 (la sua)

outlet stud distance: 66mm (M8)

handmade from 0.8mm sheet steel

wide, early starting speed band

12PS/20NM at 4000rpm

16PS/24NM at 5000rpm

20PS/24NM at 6000rpm

25PS/27NM at 7000rpm

31PS/28NM at 8000rpm

33PS/28NM at 8500 rpm

relatively loud

fitting with luggage compartment at PV/ET3

for PK models frame modifications necessary

elastically suspended

clear lacquered

separater, spring-loaded elbow
