Repair set for point set sator -OEM QUALITY (coils + points + capacitor + wires)- Vespa Sprint (VLB1T), Sprint Veloce (VLB1T), GT (VNL2T), GTR (VNL2T), Super 125 (VNC1T), Super 150 (VBC1T)

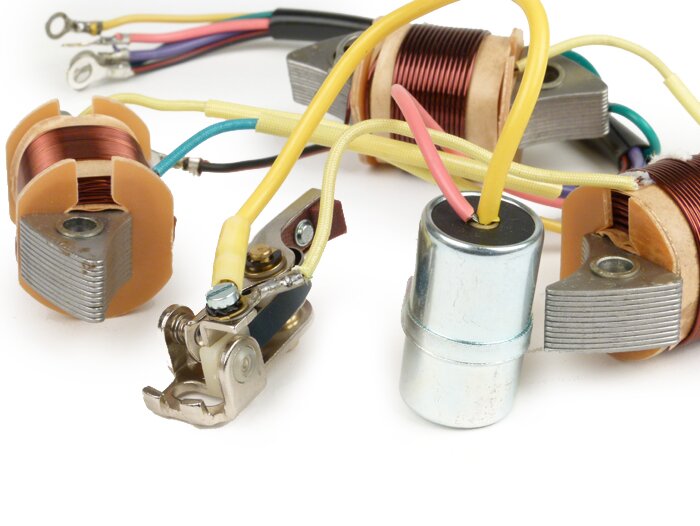

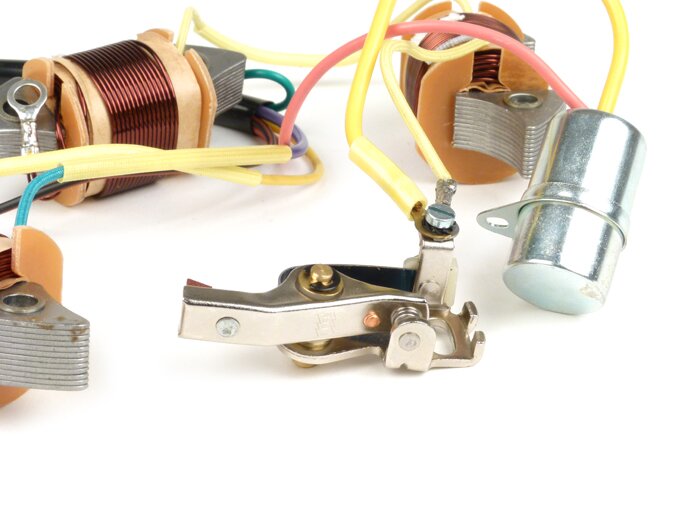

Complete spare parts package for the contact-controlled ignition base plate of the Vespa Super and Sprint models and their variants. Included are all coils, the ignition contact, the capacitor and all screws and cables.

Excellent quality, no comparison with the parts available from India!

All parts are already wired, no soldering necessary!
Thus, the original ignition can be professionally and easily repaired again.

TIP: When mounting the coils, make sure the correct height distance to the plate (compare with the original coils). If necessary, compensate with washers

.

NOTE: Only for models without battery!

NOTE
Please adjust the coils to the existing pole wheel before installation. To do this, loosen the screws of the coils, adjust them accordingly and tighten them again. The clearance between the pole wheel and the coils should be approx. 2/10mm.
The pole wheel should therefore have an inner diameter of 106.4mm. Piaggio workshops used to center the coils on the ignition base plate with a special tool (13768/C, no longer available). If the clearance of 2/10mm cannot be achieved by offsetting the coils, the ignition base plate with mounted coils can be turned to 106mm on a lathe.
